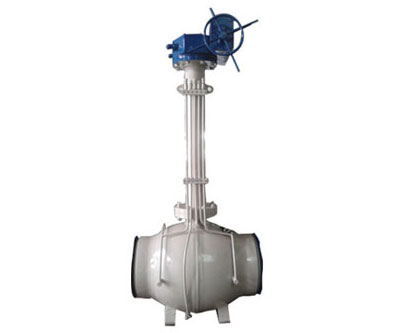

Fully Welded Ball Valve

Size:2”~48”(DN50~DN1200)
Rating:150Lb~2500Lb(PN16~PN420)
Materials: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly  etc.) alloy steel/  Albronze
End connection: RF/RTJ/BW
Operation: Lever  Gear  motor/pneumatic actuators
Optional features :Forged steel body,,Full & reduced bore,Anti-static device,Blow out proof stem
Fire safe design per API 607/API 6FA
Double block &bleed
Emergency sealing device (For 6”& larger)
Vent valve (For 6”& larger),Lifting lugs and support feet  (For 8”& larger)
ISO 5211 top flange,Optional underground extended stem
Safety relief  device,Lockable design(For gear operation)
