Cryogenic Ball Valve

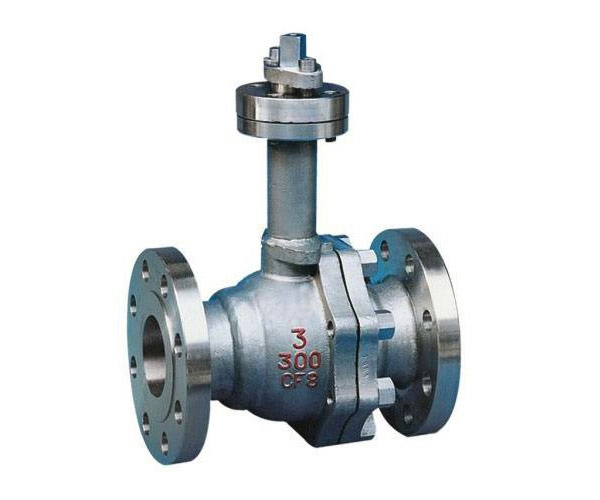

Dq41f Cryogenic ball valve

  • Product ID:Cryogenic Ball Valve
  • Phone: +86-13868602992
  • Tel: +86-0577-67069158
  • Email: sales@bjm-valve.com
  • CONTACT US

Type DN PN1.6MPa WT
(kg)
L D D1 D2 b Z-Φd H W
★DQ41F-16C
★DQ41F-16P
★DQ641F-16C
★DQ641F-16P
★DQ9B41F-16C
★DQ9B41F-16P
15 130 95 65 45 14 4-Φ14 178 140 3
20 140 105 75 55 14 4-Φ14 184 160 4
25 150 115 85 65 14 4-Φ14 195 180 5
32 165 135 100 78 16 4-Φ18 280 250 9
40 180 145 110 85 16 4-Φ18 280 300 11
50 203 160 125 100 16 4-Φ18 300 350 15
65 222 180 145 120 18 4-Φ18 330 350 19
80 241 195 160 135 20 8-Φ18 360 400 27
100 305 215 180 155 20 8-Φ18 400 500 38
125 356 245 210 185 22 8-Φ18 430 600 58
150 394 280 240 210 24 8-Φ23 500 800 81
200 457 335 295 265 26 12-Φ23 680 800 95
250 533 405 355 320 30 12-Φ25 790 1300 140
